Description
Solar pool ionizer using silver and copper anode. CDPP02P
Ionization system for the physical treatment of swimming pool water
The Solar Ionizer CDPP02P is a floating system designed to contribute to the maintenance of water through an ionization process powered exclusively by solar energy.
The equipment incorporates a copper-silver alloy electrode that gradually releases mineral ions into the water using a very low-intensity electric current generated by the integrated solar panel.
Its operation complements the usual pool maintenance procedures and can help to optimise the consumption of certain water treatment products, depending on the conditions of use, the volume of the pool and the maintenance programme applied.
Its compact design, autonomous operation and absence of external power supply make it a practical solution for residential swimming pools.
How it works:
While the equipment remains floating on the surface of the water, the solar panel transforms solar radiation into low-voltage electrical energy.
This energy activates the mineral electrode, favoring the gradual release of metal ions into the water as part of the physical ionization process.
The system works continuously during the hours of sunshine and is easily integrated into the usual pool maintenance programs.
Main features:
- 100% solar powered.
- Fully automatic operation.
- Ionization technology using copper and silver anode.
- No external electrical connections.
- Floating design.
- Low energy consumption.
- Easy installation.
- Easy maintenance.
- Replaceable anode.
- Compatible with residential pools.
Advantages:
- Contributes to water maintenance as part of the regular pool care program.
- It can help to optimise the consumption of certain products used for water treatment, depending on each installation.
- Quiet operation.
- Renewable energy.
- Low maintenance.
- No external power supply required.
- Compact and sturdy design.
- Easily replaceable anode.
Applications:
- Private swimming pools.
- Residential swimming pools.
- Single-family homes.
- Rural houses.
- Seasonal swimming pools.
Maintenance:
- Periodically clean the mineral anode.
- Check the copper concentration weekly.
- Keep the pH within the recommended values.
- Replace the electrode at the end of its useful life.
Technical characteristics:
- Type of monocrystalline solar panel coated by tempered glass with diameter of 200mm
- Panel Power: 2.00 Watts
- Electrode: Silver-copper alloy anode weighing 0.24 kg
- Premium stainless steel coil spring
- External PE housing with UV resistance
- Coil Material: Permanent Fixing Stainless Steel
- Capacity: 150 m3 of water (32,000 gallons) in optimal solar capture conditions of at least 4-6 hours per day
- Optimal operating range / copper density: 0.5 – 0.9 PPM
- The anode can last for 2 to 4 summer seasons or a full year under normal conditions of use
- Warranty: 2 years against factory defects

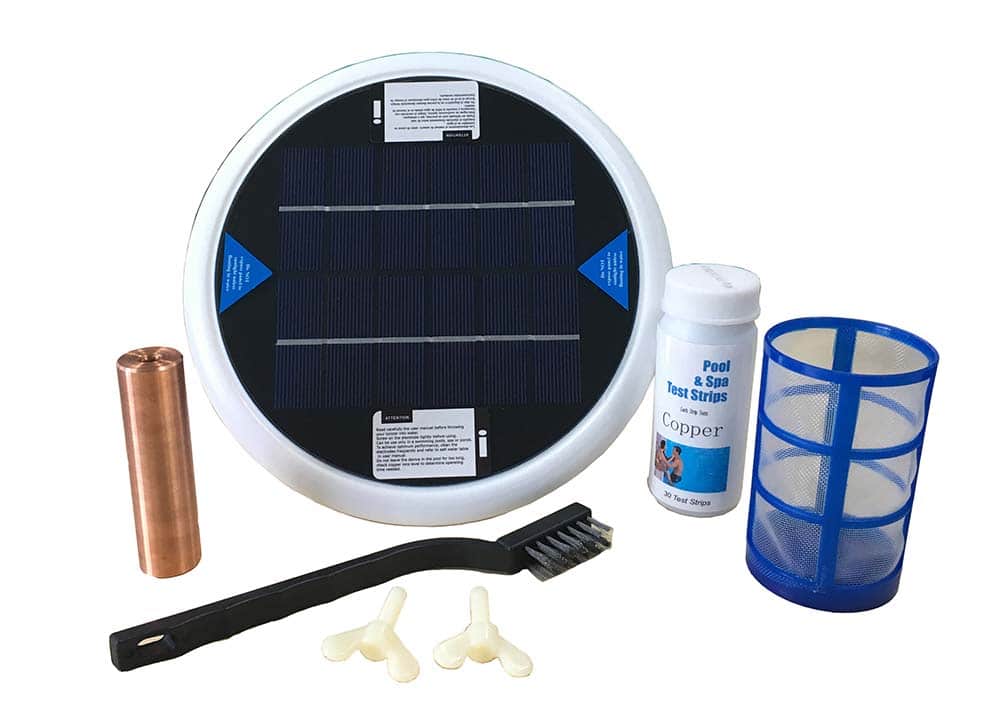

Kit Components:
- 1 base with solar panel
- 1 silver and copper electrode
- 1 stainless steel metal spring (attached to the equipment)
- 1 x Nylon Filter Basket
- 1 fixing bolt
- 1 metal fibre brush
- 1 user manual
- 30 copper test strips in packaging
