Description

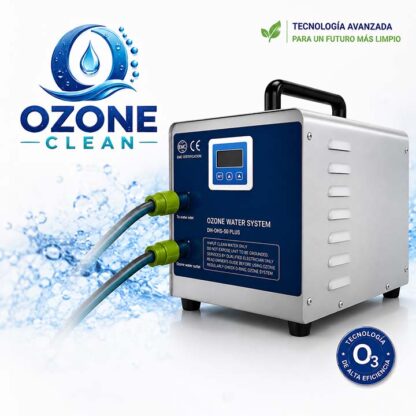

Ozone-Clean Professional 5G Plus Portable Water Ozonator.

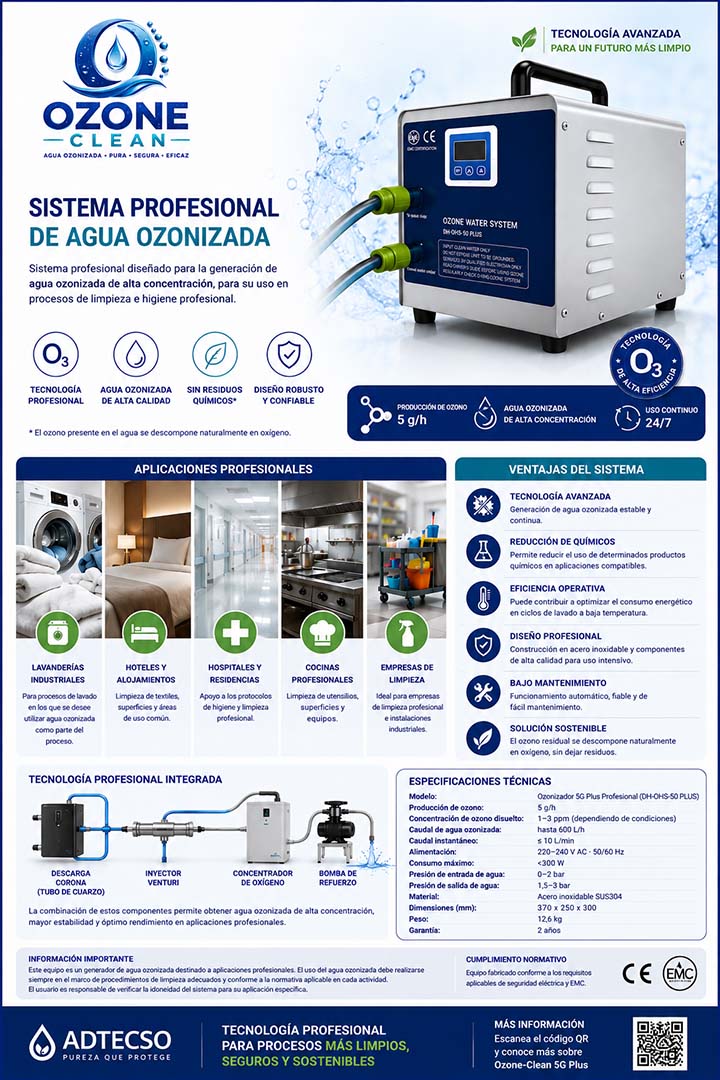

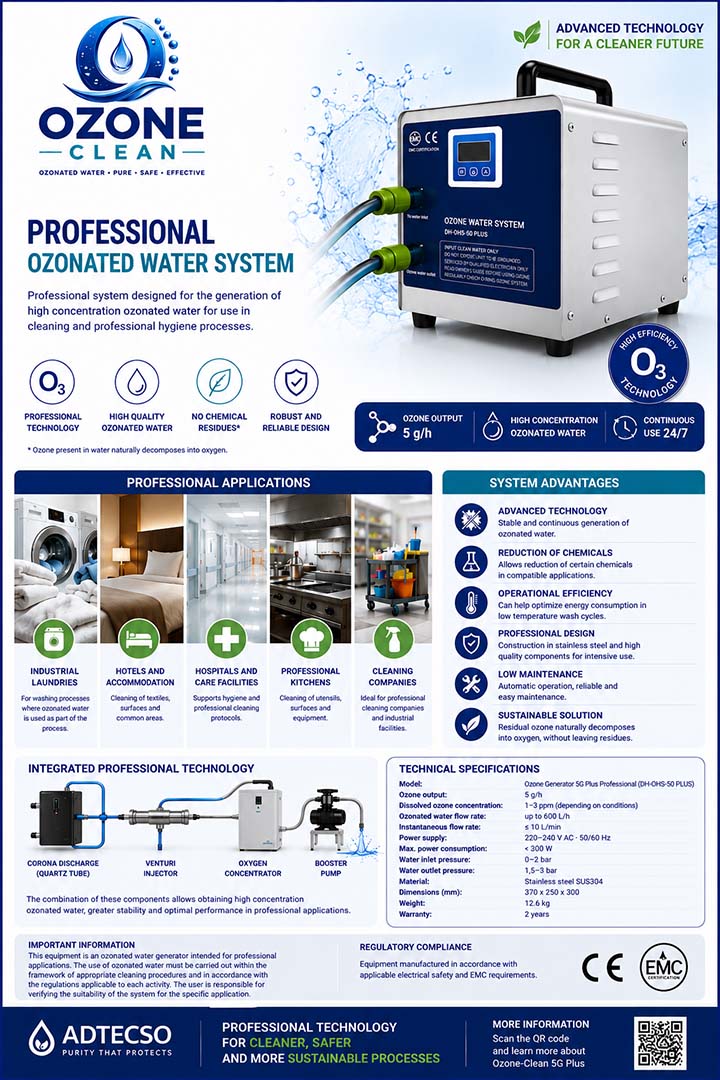

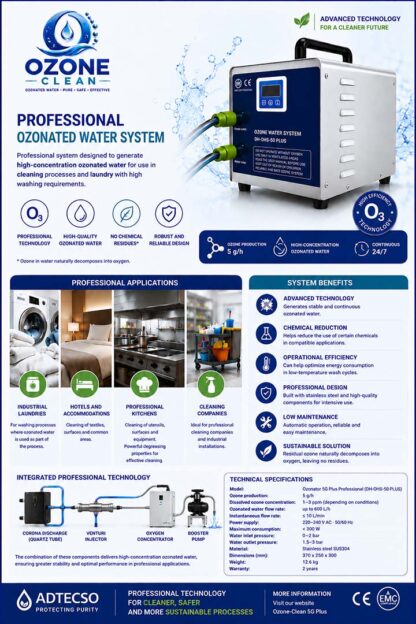

Professional system for the generation of high-concentration ozonated water
The Ozone-Clean 5G Plus Professional is a device designed for the production of ozonated water for professional cleaning and hygiene processes in industrial and commercial facilities.
Its technology integrates a corona discharge ozone generator with quartz tube, an oxygen concentrator, a Venturi injector and a booster pump, allowing continuous ozonated water with a high concentration of dissolved ozone and excellent stability.
Thanks to its SUS304 stainless steel construction, automatic operation and design for continuous service, it is an ideal solution to integrate into professional washing and cleaning processes where ozonated water is to be incorporated as part of the process.

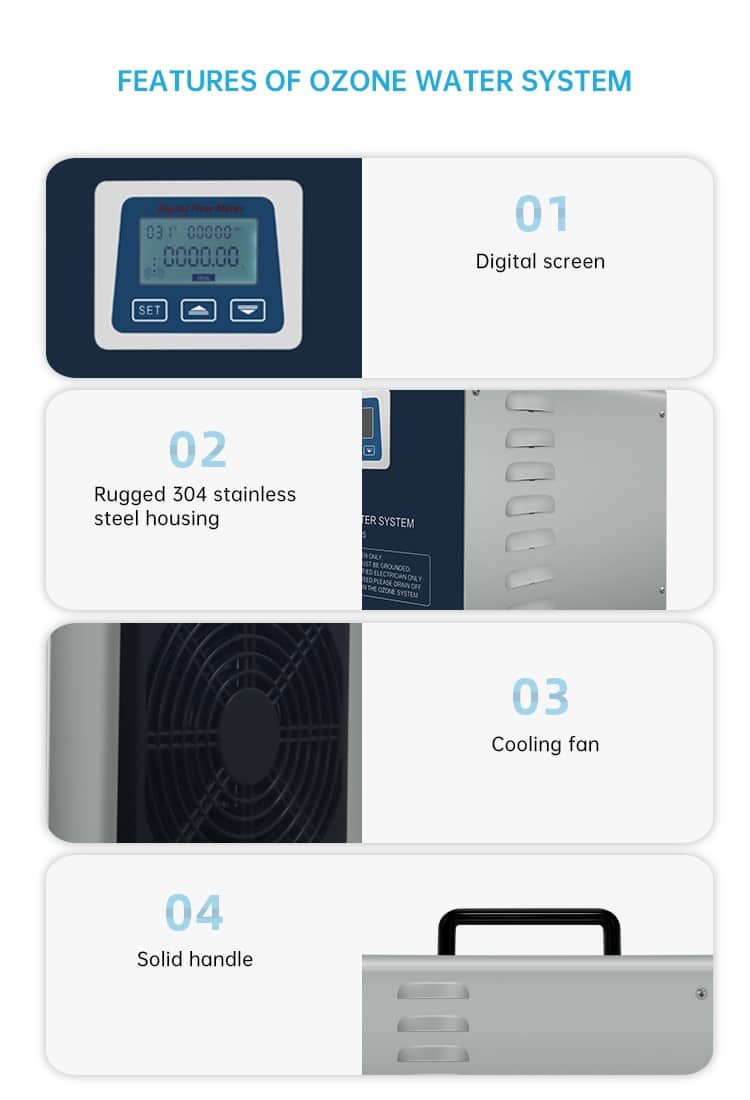

Key features:
- Ozone production of 5 g/h using professional corona discharge technology.
- Integrated oxygen concentrator to optimize ozone generation.
- High efficiency Venturi injector to promote the dissolution of ozone in water.
- Integrated booster pump that improves the mixing and stability of the ozonated water.
- Continuous production of ozonated water for professional applications.
- Automatic activation through water flow detection.
- Full SUS304 stainless steel construction.
- Compact, portable, and low-maintenance design.
- Ready for continuous operation.
- Compatible with industrial washing systems and professional cleaning processes.
- It reduces the consumption of certain chemicals in those processes where ozonated water is suitable, depending on each application.
- It can help to optimise energy consumption when used within low-temperature washing programmes, depending on the process applied.
Certifications:

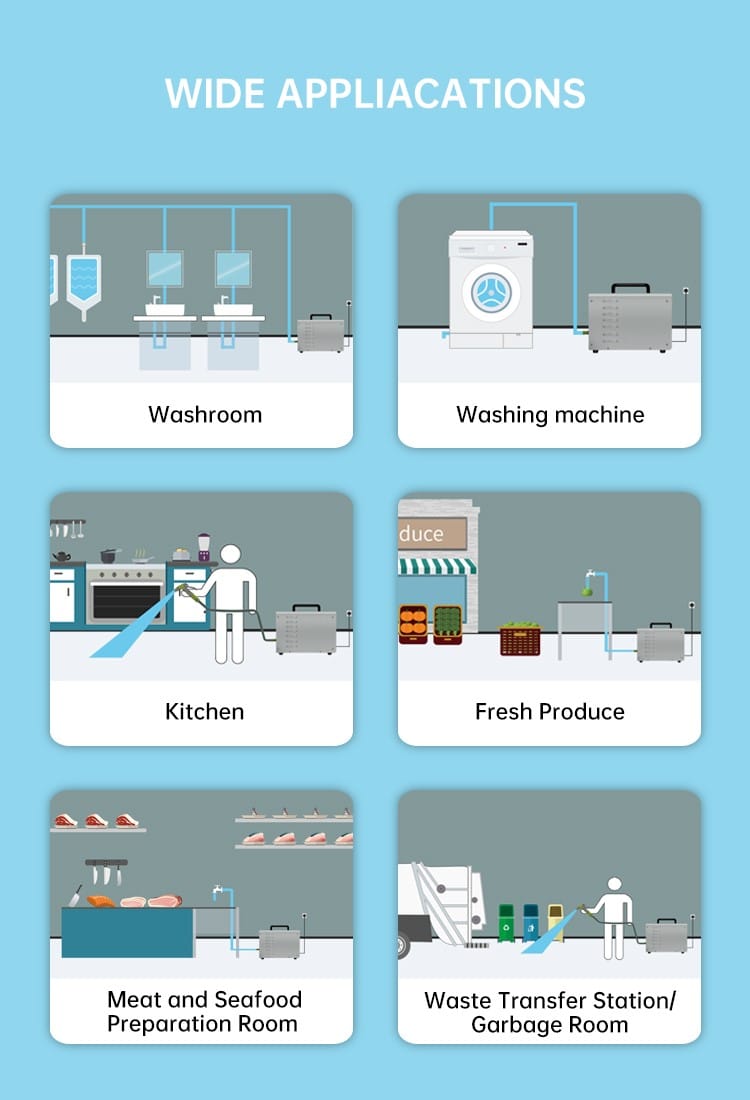

Recommended Applications:
The equipment is especially suitable for the generation of ozonated water used as part of professional cleaning processes in:
- Industrial Laundries
- Hotels
- Hospitals
- Residences
- Professional kitchens
- Food industry
- Professional cleaning companies
- Surface and Equipment Cleaning Processes
- Process Water Treatment
The suitability of the system should be assessed on a per-application basis and the cleaning protocol established by the user.
Advantages:
- Continuous production of ozonated water.
- Professional high-efficiency technology.
- Easy integration into existing installations.
- Reduced use of certain chemicals in compatible applications.
- Low maintenance.
- Robust design for intensive use.
- Automatic operation.
- Environmentally friendly solution, as the residual ozone is broken down back into oxygen.

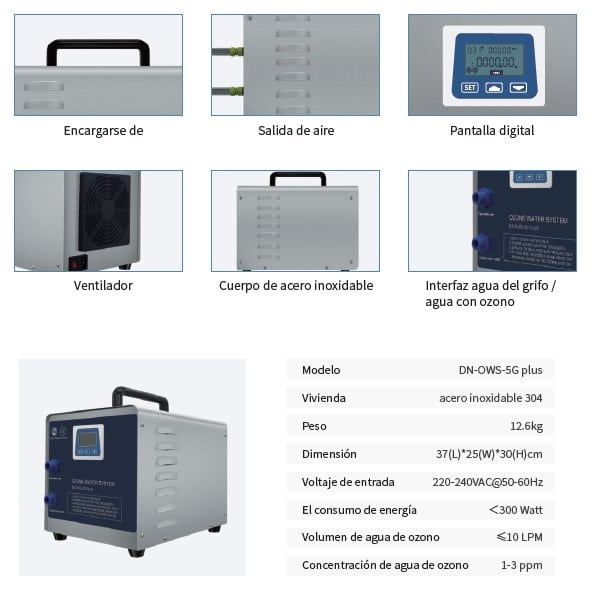

Technical Specifications:
Model: CDP-5G Plus Professional
- Ozone production: 5 g/h
- Dissolved ozone concentration: 1–3 ppm (depending on working conditions)
- Ozonated water flow: up to 600 L/h
- Instantaneous flow rate: ≤10 L/min
- Integrated oxygen concentrator
- High efficiency Venturi injector
- Integrated booster pump
- Power supply: 220–240 V AC · 50/60 Hz
- Maximum consumption: <300 W
- Inlet pressure: 0–2 bar
- Outlet pressure: 1.5–3 bar
- Housing: SUS304 Stainless Steel
- Dimensions: 370 × 250 × 300 mm
- Weight: 12.6 kg
- Warranty: 2 years
Important information:
This equipment is an ozonated water generator intended for professional applications. The performance of the system depends on the installation conditions, water quality, temperature, contact time and the cleaning procedure used by the user.
References to ozone describe the generally recognized properties of this substance. The equipment is marketed as an ozonated water generation system and does not imply, in itself, authorisation to make biocidal or health claims that must be subject to Regulation (EU) 528/2012. The user is responsible for verifying the adequacy of the process to the applicable regulations for each use.
