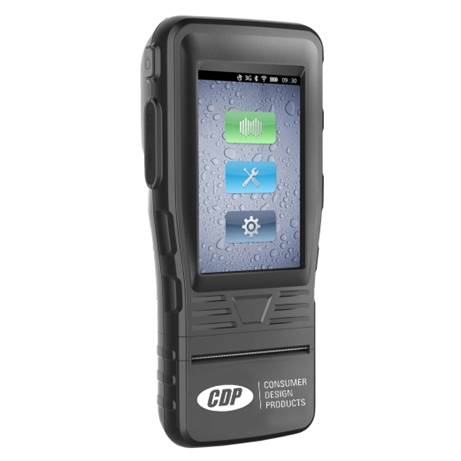

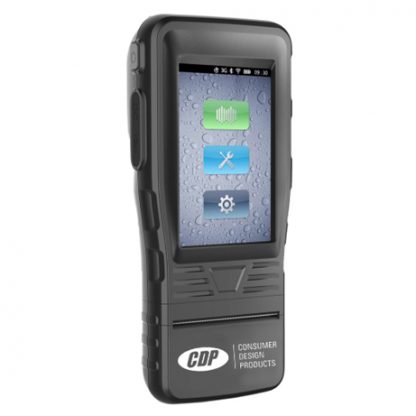

Professional drug analyzer CDP WDTP-10

With the portable ADR-WDTP10 drug analyzer you can automatically process saliva samples in a portable format with great autonomy, allowing more than 600 tests without printing or 400 with the printing option.

It integrates a printer that allows you to obtain a ticket with the test results, date, time, etc. serving as evidential proof. It is also equipped with a GPS module to geolocate all the tests, and data connectivity via Wi-Fi and 4G.

Drug detection is fast, reliable, and intuitive using this device. The unit is equipped with OCR digital recognition technology and touch screen on a solid Linux type environment with memory that allows you to store up to 100,000 records.

The turnaround time for test results is less than 5 minutes.

For use volumes greater than 600 tests/year we provide on deposit at no cost to our customers the WDTP-10 CDP electronic analyzer, which allows to automate the process and document the tests electronically by printing results, in addition to storing them in memory.
SKU: ADR-WDTP10 Category: Tag:

Description

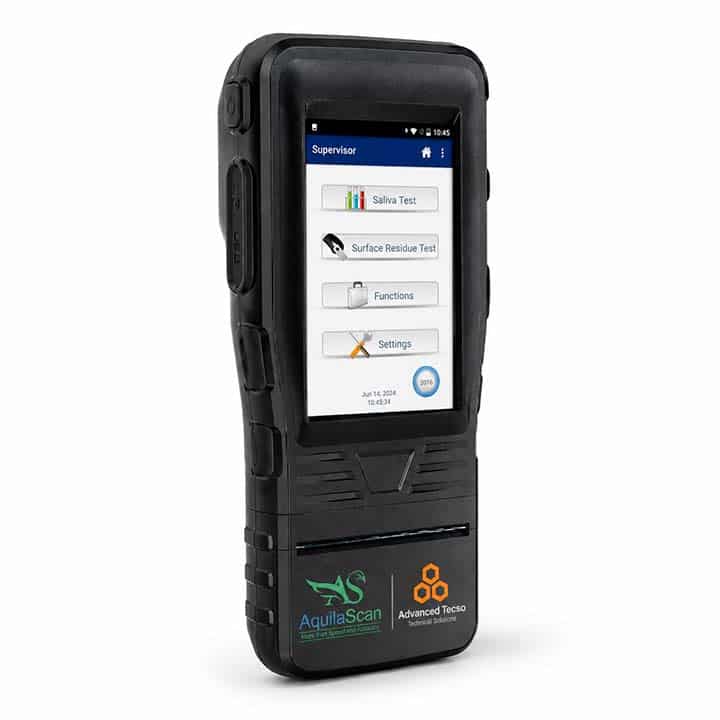

Professional drug Analyzer CDP WDTP-10

With the portable ADR-WDTP10 drug analyzer you can automatically process saliva samples in a portable format with great autonomy, allowing more than 600 tests without printing or 400 with the printing option.

It integrates a printer that allows you to obtain a ticket with the test results, date, time, etc. serving as evidential proof. It is also equipped with a GPS module to geolocate all the tests, and data connectivity via Wi-Fi and 4G.

Drug detection is fast, reliable, and intuitive using this device. The unit is equipped with OCR digital recognition technology and touch screen on a solid Linux type environment with memory that allows you to store up to 100,000 records.

The turnaround time for test results is less than 5 minutes.

Analizador de Drogas profesional CDP WDTP-10

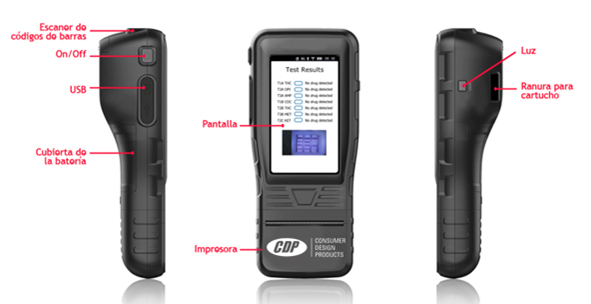

Featured characteristics:

  • Built-in printer integrated in the same device.
  • Touchscreen data entry.
  • Long battery life: 600 tests without printing and 440 times with printing.
  • High memory capacity: Up to 100,000 records with all data and images from the Test/cassettes.
  • Wi-Fi and 4G connection (optional) for software update and data transfer to the backend management software (the client can develop IT later using our protocol).
  • No need for periodic calibrations.
  • With built-in GPS tracking module.
  • QR code scanner (you can scan the QR code of the cassette, as well as the QR code of the driver’s license, personnel cards, etc.).
  • With Internal camera, the photo of the cassettes can be saved with the records for traceability.
  • Adjustment of test temperature range according to the requirement of different cassettes.
  • Up to 25 data entry fields can be configured in advanced settings.

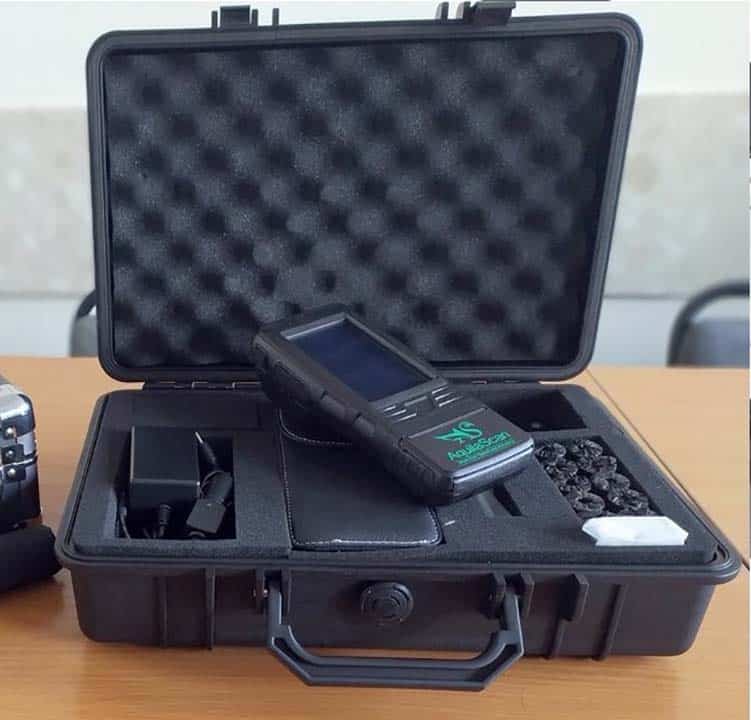

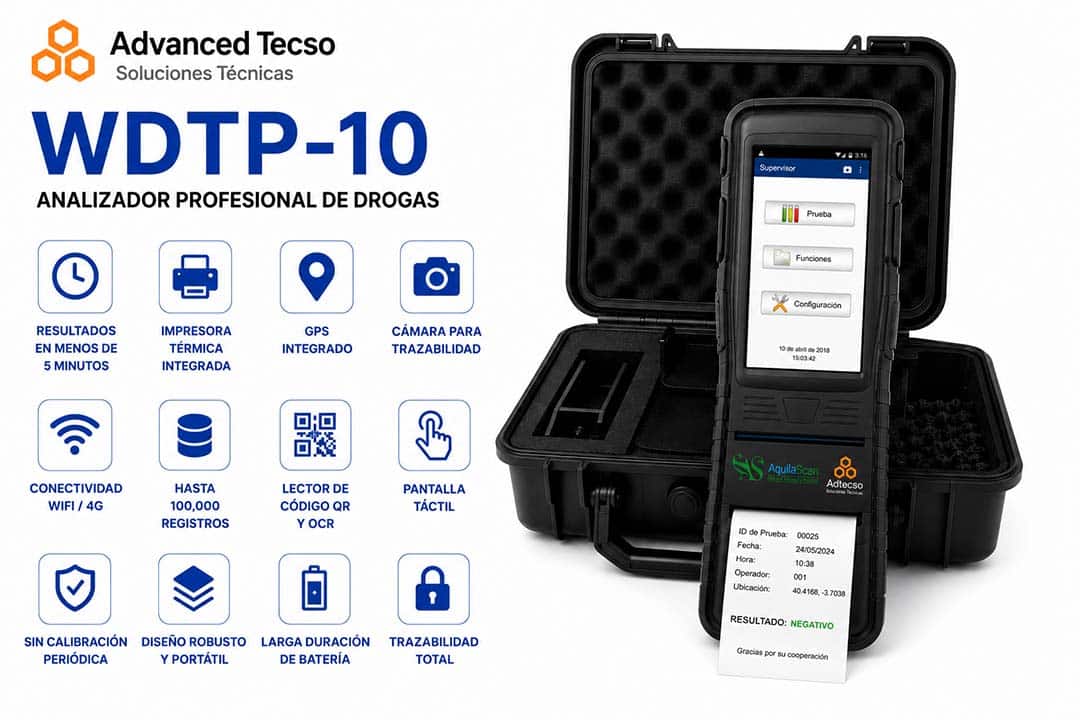

The analyzer kit is supplied in a complete carrycase with an additional synthetic leather holder to transport it safely:

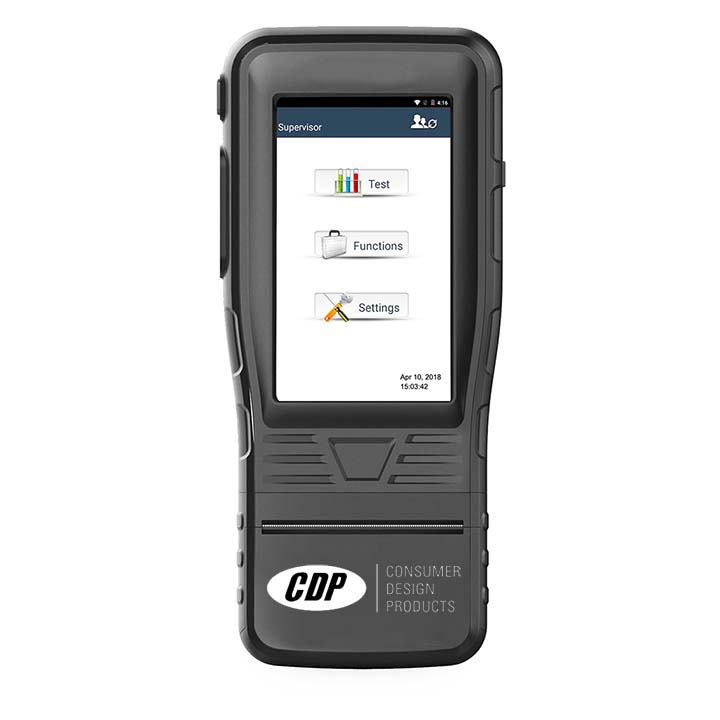

Analizador de Drogas profesional CDP WDTP-10

Main characteristics:

  • Manageable format for long-lasting portable use
  • Built on very stable Linux operating system
  • Intuitive use touch screen
  • Storage for up to 100.000 test records
  • Thermal printer/Bluetooth
  • 2D barcode scanner
  • Connectivity Wi-Fi, 3G
  • Geo-Location of tests by GPS
  • Cartridges to detect up to 7 types of drugs with OCR reader

Standard formats available. Drug tests compatible with the analyzer:

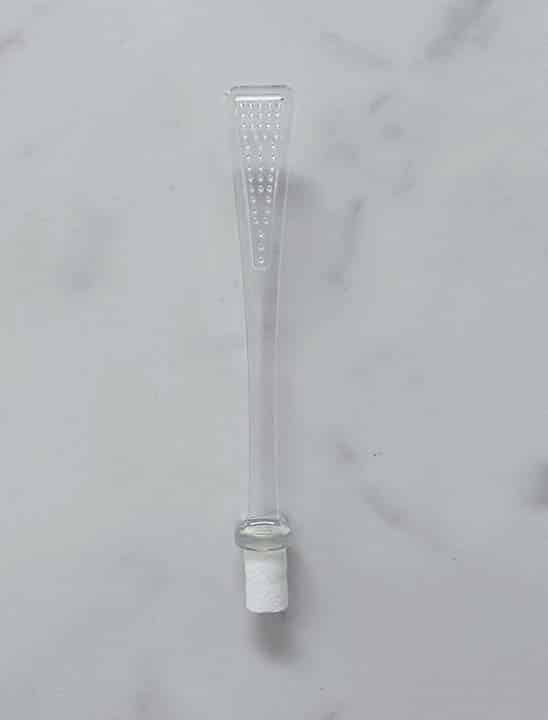

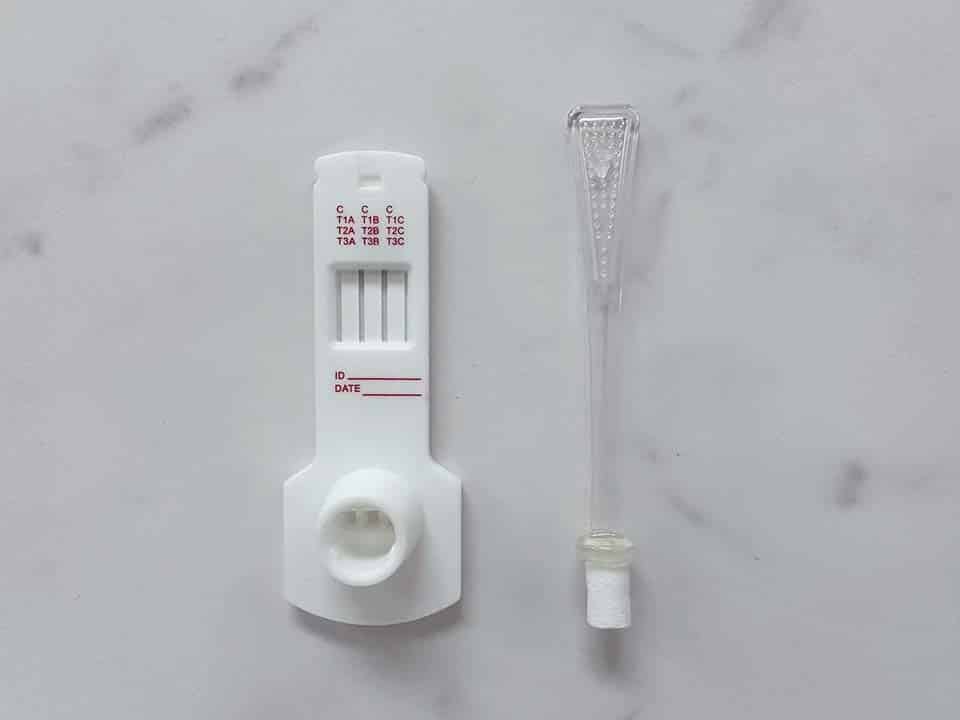

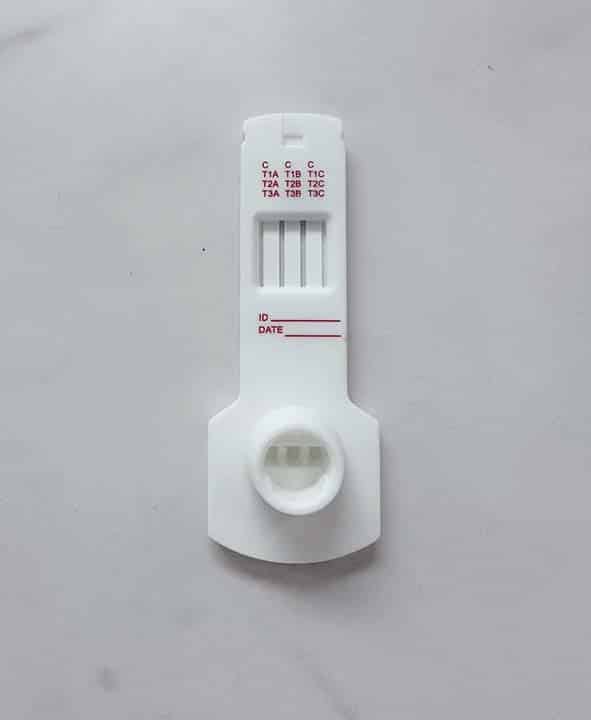

CDP-SCAN-7. Multidrug test in saliva
  • A: THC 40 / OPI 20 / AMP 50
  • B: COC 20 / MET 50/ BZO 10
  • C: KET 50

Other on-demand options:

  • A: THC 40 / OPI 20 / AMP 50
  • B: COC 20 / MET 50/ BZO 10
  • C: KET 50
TOXWIPE ™ ORAL 6+ Multidrug test in saliva
  1. Marihuana (padre THC): 12 [ng / mL]
  2. Amphetamines 50 [ng / mL]
  3. Opiates: 20 [ng / mL]
  4. Cocaine: 20 [ng / mL]
  5. Methamphetamine and ecstasy (MDMA): 50 [ng / mL]
  6. Benzodiazepines or Phencyclidine or Oxycodone: 10 [ng / mL]

Stock productions are made with custom cuts for orders of 500 or more units.

* Opiates 10 [ng/mL] available as well.
** Cocaine 15 [ng/mL] available as well.

Specifications:

  • CPU:  ATMEL Sama 5D31 536Mhz
  • Screen: Touch screen 4.3″ (800X480)
  • Operating system: Linux
  • Dimensions: 20.9 X 9 X 5.64 cm
  • Weight: 443.80 gr (with thermal printer) 413.90 gr (without Bluetooth printer)
  • Battery: Lithium battery 7, 4V / 1800 mA
  • Battery life: 350 test (with printing) 1.000 test (without printing)
  • Camera: 130 megapixels
  • RAM: Flash memory 256Mb SDRAM 4Gb
  • Storage capacity: 100,000 test records
  • Use temperature: -25 to 50º
  • Storage temperature: -25 to 70º
  • Barcode: 3095
  • CPS: U-Blox6
  • Printer: Built-in thermal printer / external Bluetooth printer
  • Internet: Wi-Fi and  3G

Available drugs:

Drug/Cut

  • AMP (Anphetamines) 50
  • BZO (Benzodiazepines) 10
  • BUP (Buprenorphine) 5
  • COC (Cocaine) 20
  • COT (Cotinine) 50
  • EDDP (Metabolite of methadone) 20
  • KET (Ketamine) 50
  • THC (Metabolites) 12
  • THC (Hashish, Marihuana) 50
  •  MTD (Methadone) 30
  • MET (D-Methamphetamine) 50
  • OPI (Opiates) 40
  • OXY (Oxycodone) 40
  • PCP (Phencyclidine) 10
  • PPX (Prophylaxis) 50
  • BAR (Barbiturate) 50
  • MDMA (Extasis) 50

Video



Documents

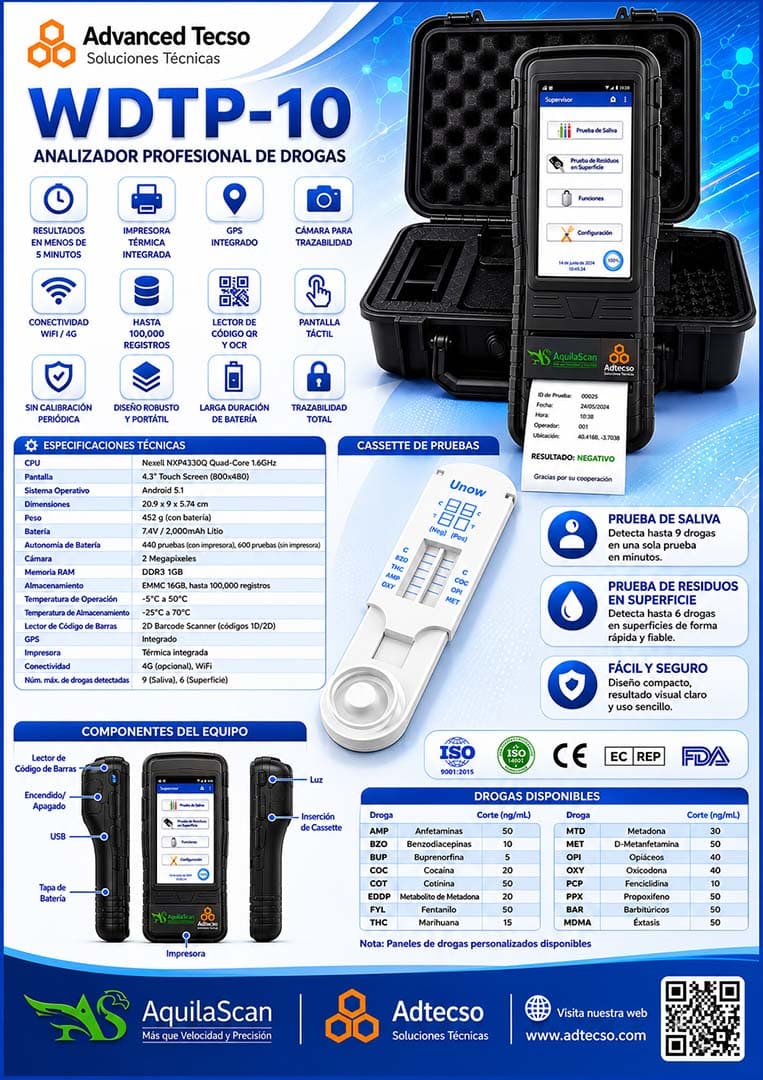

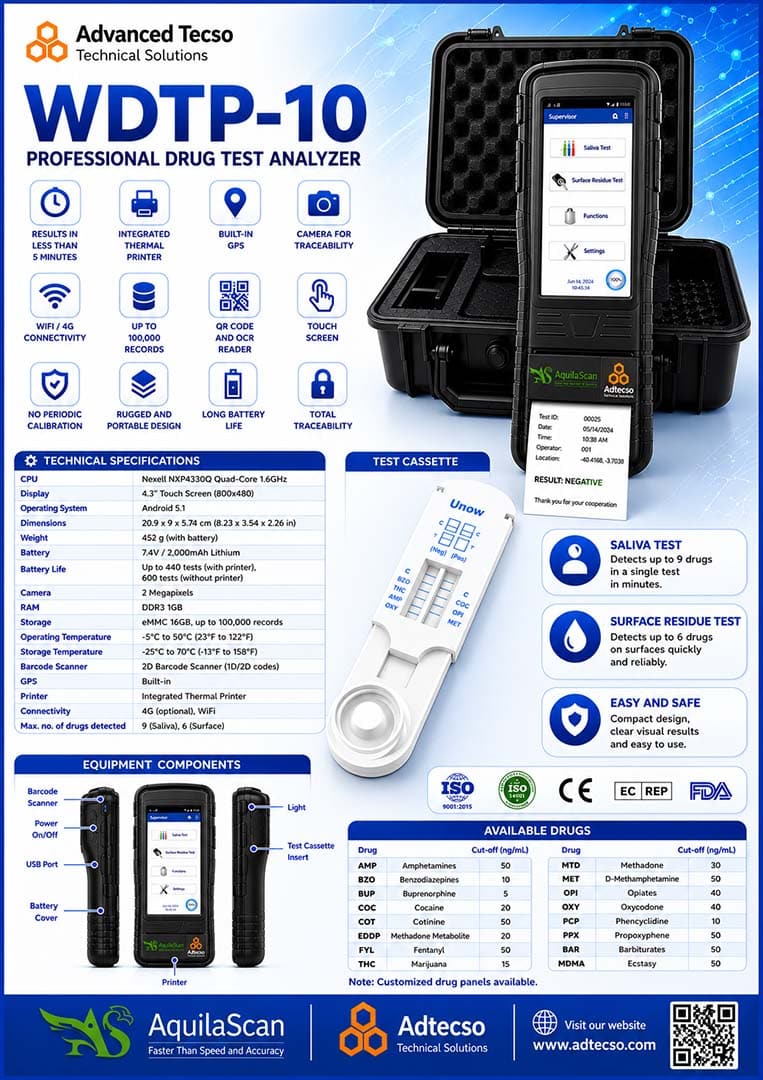

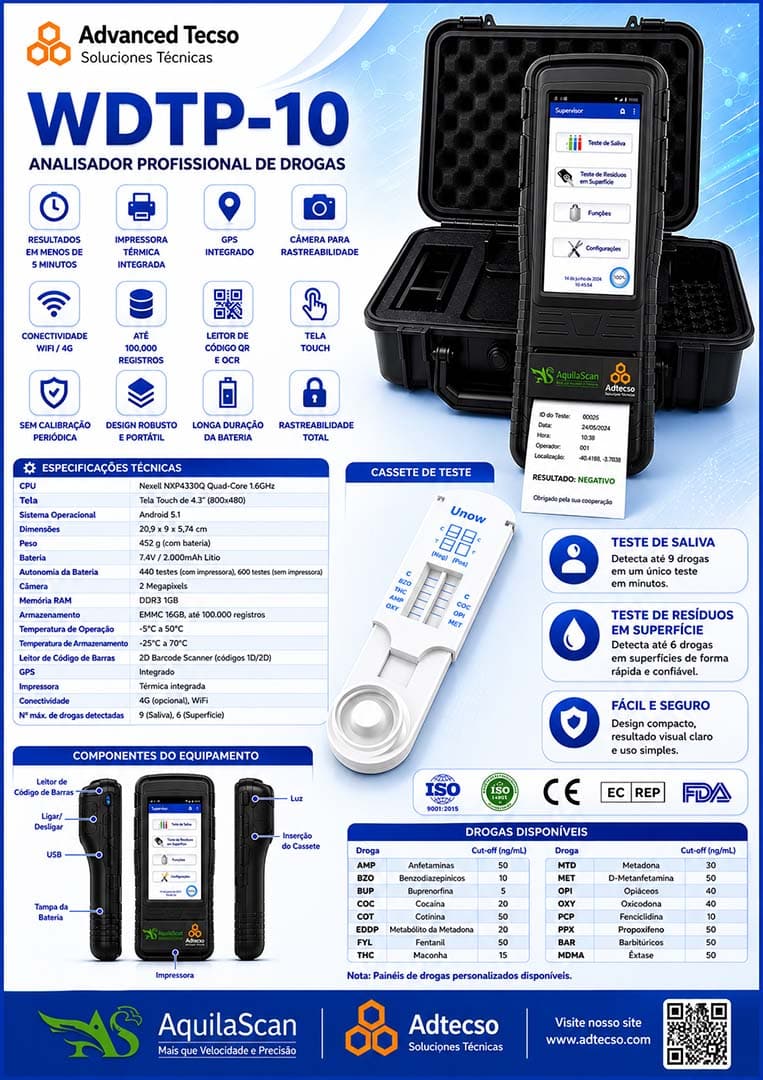

Ficha Analizador de Drogas profesional CDP WDTP-10.pdf

Documentos Drug tester.zip

KEY FEATURES DRUG ANALYZER

Certificado CE #1

Certificado CE #2

Certificado CE #3

Certificado CE #4

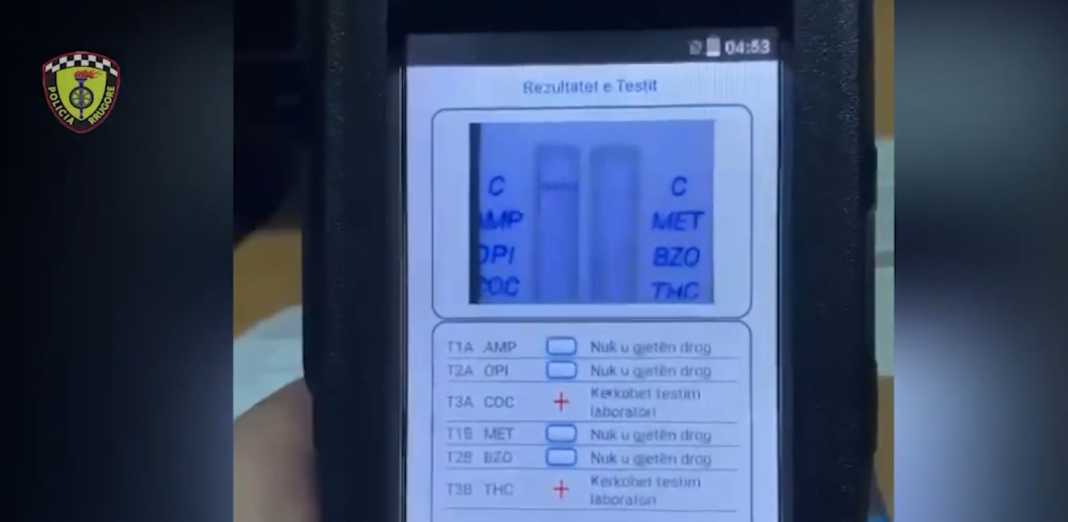

See news: Driving under the influence of drugs, 64 cases in less than 8 months.
