Ozone System for Ozone-Clean Stainless Steel SUS304 Washing Machines Ozone Laundry System – DINO Purification.
OZONE SYSTEM FOR EFFICIENT AND SUSTAINABLE WASHING.
Innovative solution that transforms traditional washing by using ozone in cold water, eliminating chemicals, reducing costs and improving hygiene.
Transform your laundry into an efficient, eco-friendly and cost-effective system with ozone technology. A comprehensive solution that goes beyond the washing machine, becoming a cleaning and disinfection system for the entire house.
This advanced ozone machine is based on ozone generation technology by corona discharge in quartz tube, a highly efficient and reliable system for ozone production.
The home model incorporates an integrated Venturi injector, which allows the ozone generated in a gaseous state to be mixed with water immediately. This process facilitates the effective dissolution of ozone in the water, generating ozonated water directly available for washing and disinfection applications. Under common operating conditions in Europe, characterized by higher network pressures, and using standard measuring equipment on the market, the system is capable of reaching dissolved ozone concentrations in the range of 0.8 to 1.2 mg/L, guaranteeing a high level of efficiency in sanitation processes.
✔ Reduces operating costs
✔ Improves chemical-free hygiene
✔ Increases the useful life of textiles
✔ Simple and fast installation
✔ Eco-friendly and sustainable solution
The machine is made entirely of SUS304 STAINLESS STEEL, a high-quality material widely used in industrial and healthcare environments due to its excellent properties.
Key advantages:
- 🛡 High corrosion resistance: ideal for continuous work in contact with water and ozone.
- ⏳ Maximum durability: prolongs the life of the equipment even in demanding conditions.
- 🧼 Superior hygiene: non-porous surface, easy to clean and suitable for applications where cleaning is critical.
- 🔧 Low maintenance: reduces operating costs and the need for replacements.
This characteristic positions the equipment as a robust, reliable and intensive use solution, far above equipment made with conventional materials.
Problem with traditional washing:
As shown in the comparison:
- Intensive use of hot water
- Chemical dependence
- Long wash cycles
- Increased fabric wear
- High energy consumption
Solution. Ozone technology:
The ozone system:
- Works with cold water
- Disinfects and eliminates odors naturally
- Reduce or eliminate detergents
- Shortens wash cycles
- Improves overall process efficiency
👉 It goes beyond traditional washing, optimizing time, costs and results.
Key Benefits:
💧 Savings and efficiency
- Cold washing → energy savings
- Lower detergent consumption
- Reduced operating costs
🧼 Superior hygiene
- Natural disinfection (bacteria, odors, and residues)
- Cleaning of the washing machine itself
- Removal of biofilm and dirt in water circuits
🏠 Extended Household Hygiene
- Ideal for mopping floors with ozonated water
- Effective cleaning of kitchens, countertops and utensils
- Chemical-free disinfection of bathrooms and surfaces
- Elimination of odours in textiles and spaces
- Hygienic washing of fruits and vegetables
👉 A comprehensive solution that goes beyond the washing machine, becoming a cleaning and disinfection system for the whole home
👕 Tissue Care
- Longer shelf life
- Reduced chemical aggression
🌱 Sustainability
- Fewer chemicals → lower environmental impact
- Lower energy consumption
Applications:
The system is not only for laundry:
- Domestic and industrial washing machines
- Cleaning of bathrooms and toilets
- Washing fruits and vegetables
- General cleaning
- Surface disinfection
👉 Multifunctional solution for domestic, industrial and horeca environments.

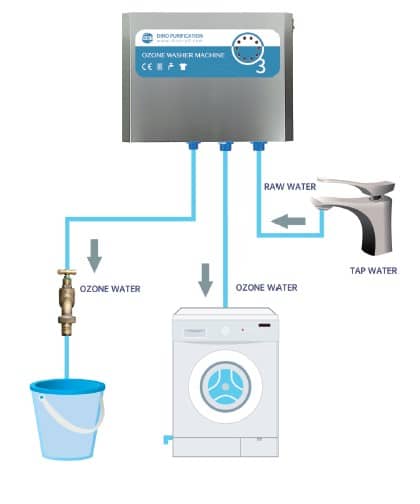

🔹 Installation:
- Direct connection to the water network
- Generates ozonated water in real time

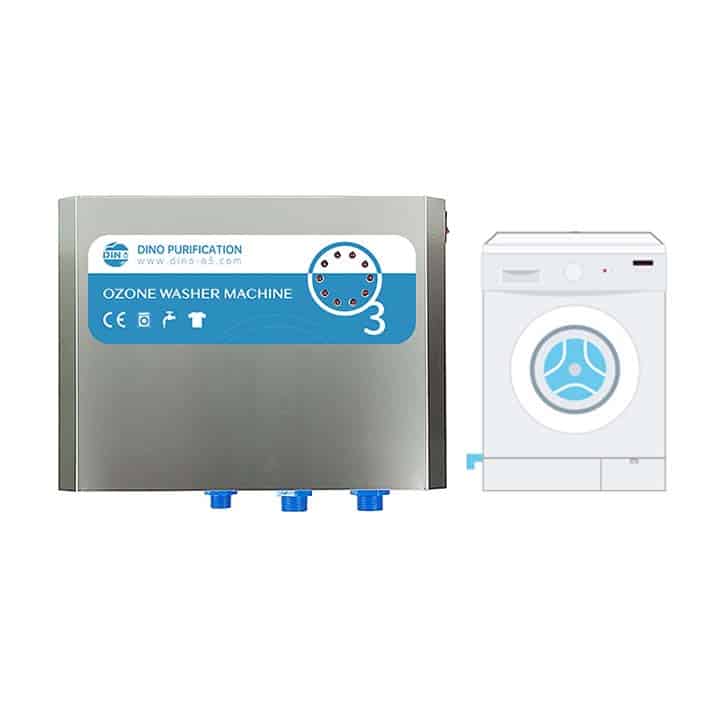

- Compatible with existing washing machines
- Easy installation (standard input/output)
👉 No complex modifications required
⚙️ Technical sheet:

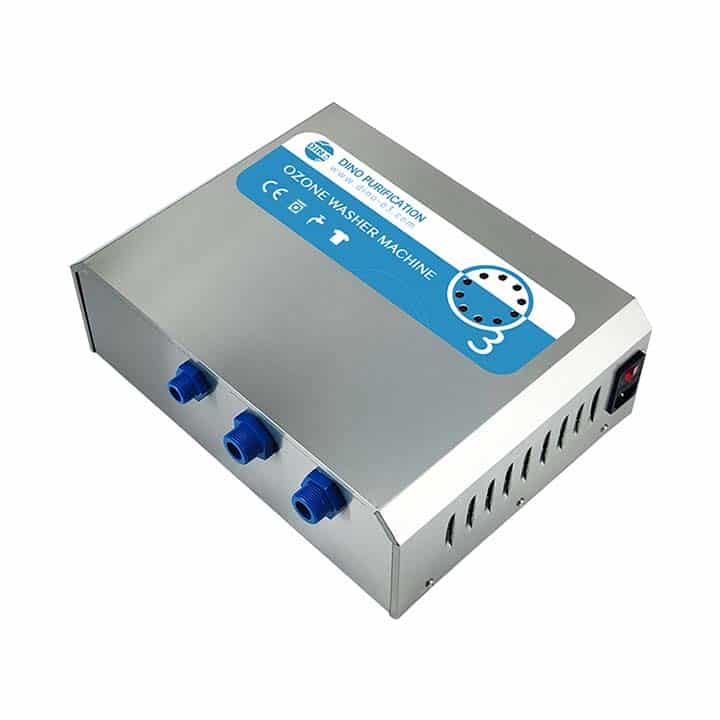

Model No.: DN-OWS-5G mini
🔧 Key features:
- Power: 55W
- Water Flow Rate: 4.0~7.0L/min
- Dissolved Ozone Concentration: 0.5~1.2mg/L
- Dimensions: 36 × 27 × 12 cm
- Weight: 5 kg
- Cooling: Air

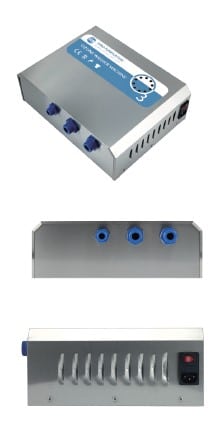

🔌 Connections:
- Inlet: 3/4″ male
- Departure:
- 1 × 3/4″ male
- 1 × 1/2″ male
⚡ Power:
- AC 220V/50Hz
- Compatible 110V/60Hz
💧 Operating Requirements:
- Water pressure: 0.15 – 0.7 MPa
- Air flow: 4 – 7 L/min
🛠 Material:
- SUS304 Stainless Steel (High Durability)
Accessories included in the Kit:
- Power adapter.

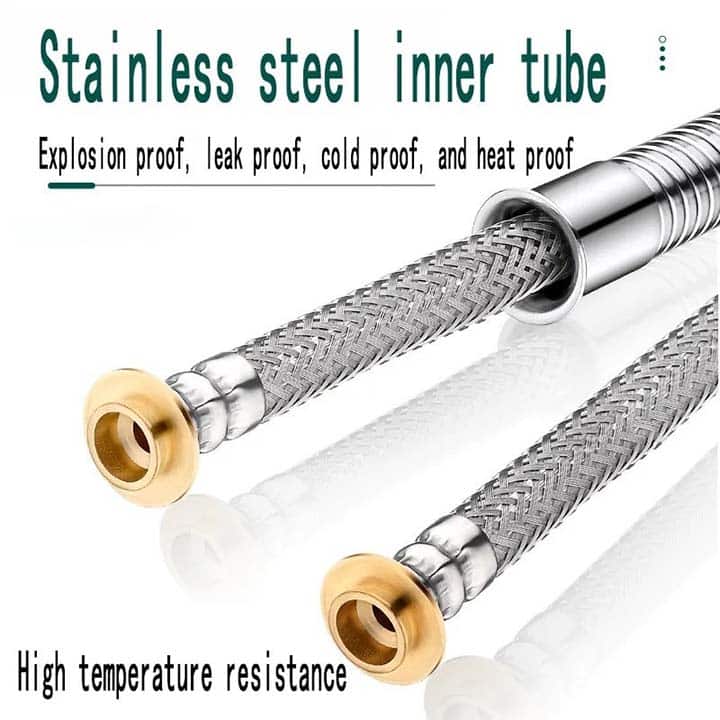

- Inlet and outlet hoses: (connected with washing machine and water intake).

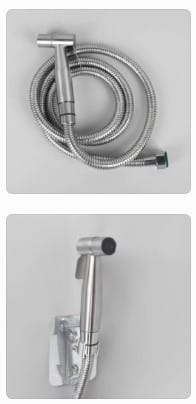

- Another hose with auxiliary diffuser in stainless steel.
- Stainless steel safety shut-off valve.
- Wall mount adapter.
